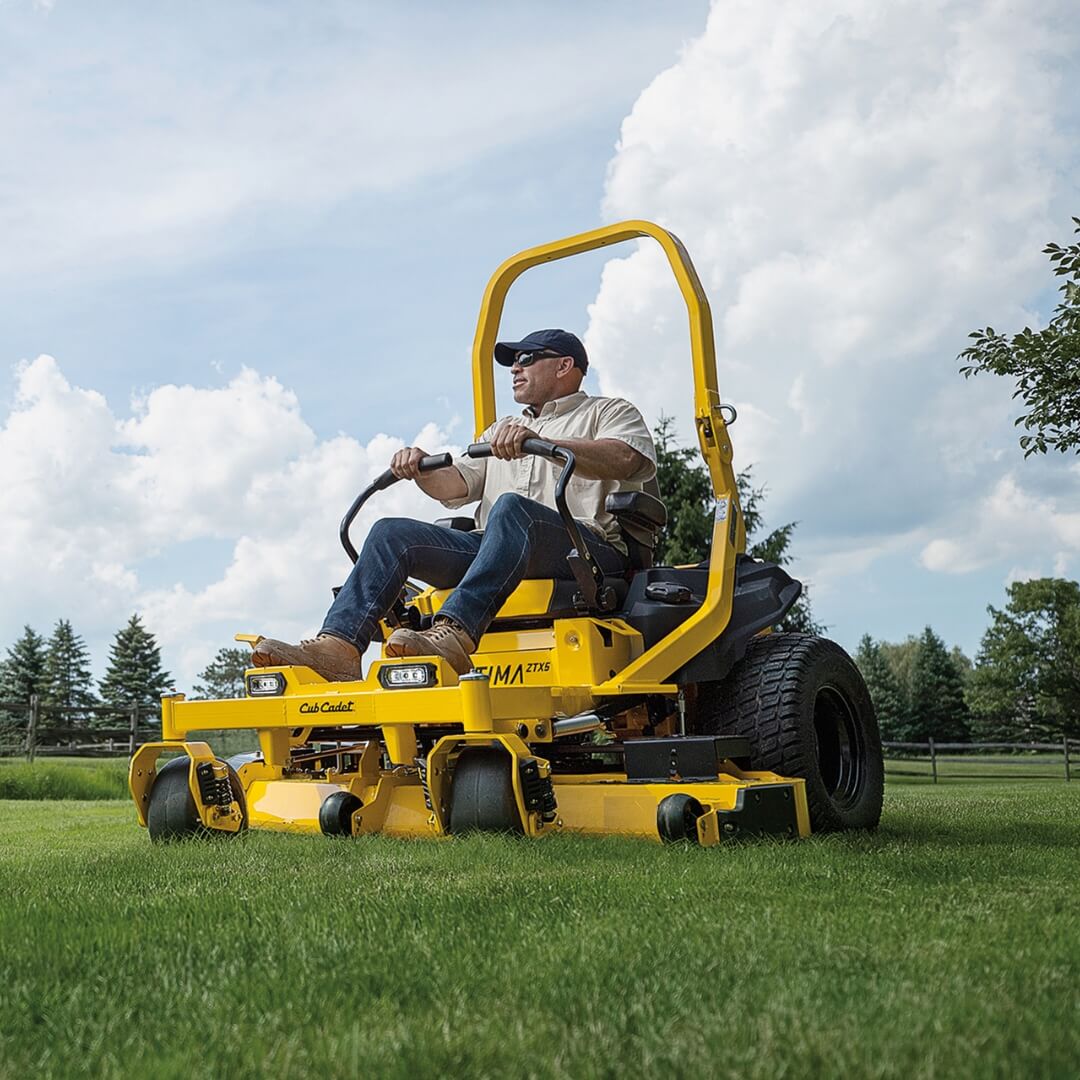

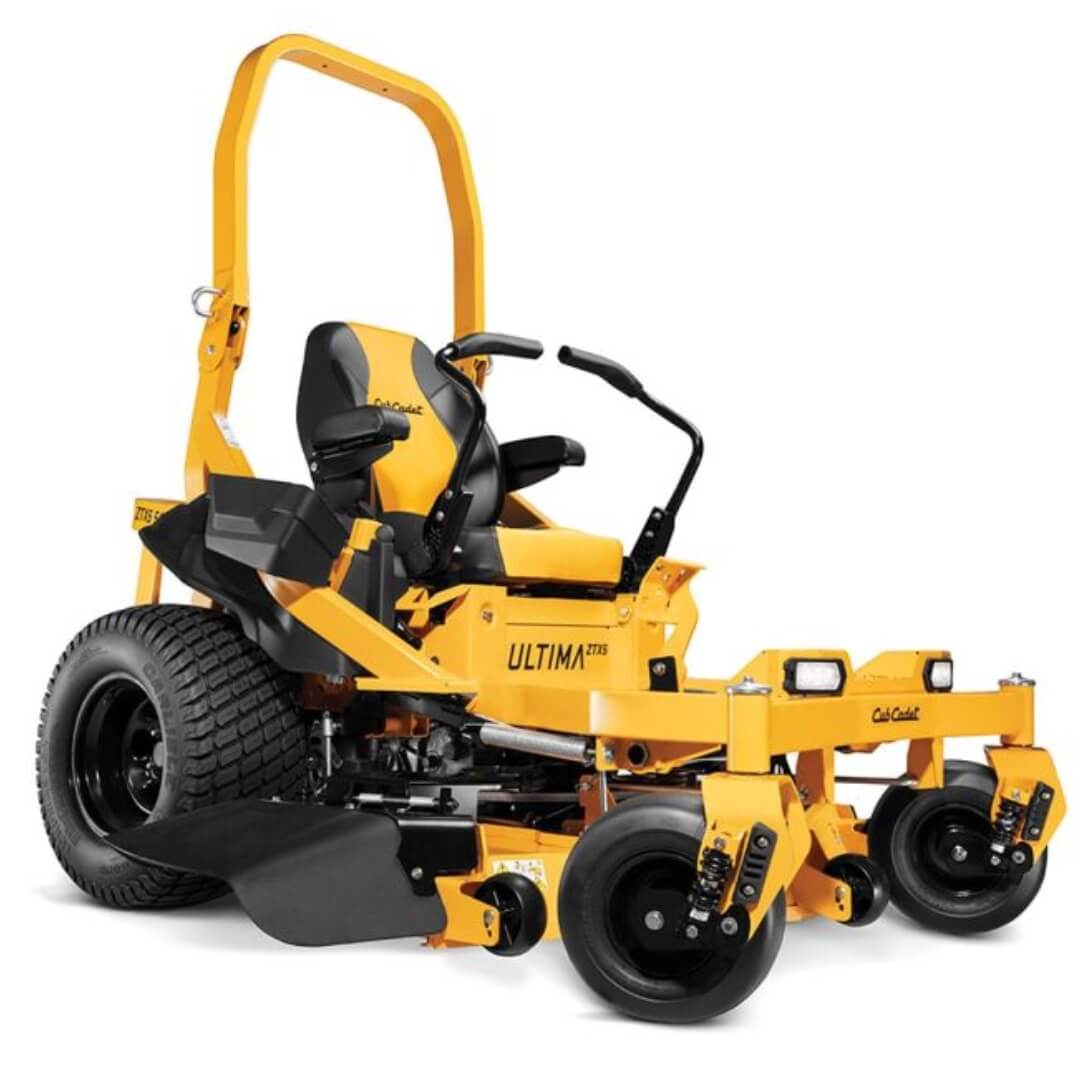

Cub Cadet ZTX5 48 Inch Ride On Mower Zero Turn

With its distinctive design and cutting-edge engineering, the next generation Ultima ZTX5 48 delivers unmatched performance for properties up to 48 hectares. Built with commercial-grade features including a 48-inch fabricated steel deck, ROPS protection, and dual ZT3200 transmissions, this premium zero turn mower combines ultimate durability with superior productivity. The 23HP Kawasaki V-Twin engine provides reliable power, while the famous Cub Cadet Aeroforce deck design ensures a best-in-class cutting finish every time. User comfort is paramount with ergonomic features throughout, making this the ultimate choice for discerning property owners who demand professional results with operator comfort.

Key Features & Benefits

Engine Performance

• 23HP Kawasaki V-Twin engine for reliable, powerful operation
• Key start ignition system for convenient operation
• Centre-mounted 78.8-litre fuel tank for extended mowing sessions
• Maximum drive speed of 13 km/h for efficient coverage

Cutting System Excellence

• 48-inch fabricated steel cutting deck with 10-gauge construction
• 2-gauge reinforcement and 7-gauge side wraps for maximum durability
• Cub Cadet's renowned Aeroforce deck design for superior cutting performance
• 16-position cutting height adjustment from 25mm to 120mm
• Electric PTO blade engagement with three high-performance blades

Operator Comfort & Control

• Premium high-back adjustable seat with cushioned armrests and suspension
• Over-moulded comfort lap bars for smooth operation
• Rubber footrest for enhanced comfort during extended use
• Easy dial deck height adjustment for convenient operation
• Roll Over Protection Structure (ROPS) for enhanced safety

Superior Maneuverability & Design

Zero Turn Precision

• True zero turn capability for ultimate maneuverability around obstacles
• Dual EZT 3200 hydrostatic transmissions for precise control
• Front wheel steering with 13 x 6.5-inch tyres
• 23 x 12-inch Turf Master rear tyres for excellent traction

Maintenance & Durability

• Open rear design for easy access to belts and deck components
• Anti-scalp wheels protect deck and turf quality
• Tow hitch included for versatile functionality
• Operator presence control safety system

Technical Specifications

Engine & Performance

• Engine: 23HP Kawasaki V-Twin
• Transmission: Dual EZT 3200 Hydrostatic
• Maximum Speed: 13 km/h forward, 5 km/h reverse
• Maximum Slope Capability: 15 degrees

Cutting Specifications

• Cutting Width: 48 inches (122cm)
• Deck Construction: Fabricated steel with 10-gauge thickness
• Cutting Height Range: 25mm - 120mm (16 positions)
• Blade Configuration: 3 blades with electric PTO engagement

Physical Dimensions

• Product Length: 215cm
• Product Width (Chute Up): 125cm
• Product Weight: 341kg
• Suitable Block Size: Up to 12 acres

Additional Features

• Fuel Capacity: 78.8 litres
• Country of Manufacture: United States
• Optional accessories: Grass catcher and mulch plug available

Warranty & Support

The Ultima ZTX5 48 is backed by Cub Cadet's comprehensive warranty coverage, featuring a 3-year domestic warranty (2-year commercial) on both the engine and unit, demonstrating the manufacturer's confidence in build quality and reliability.

Transform your property maintenance experience with the Cub Cadet Ultima ZTX5 48 - where professional performance meets operator comfort. This premium zero turn mower represents the perfect balance of power, precision, and productivity for serious property owners.

More Information

For expert advice on whether the ZTX5 48 is right for your property, contact the team at Mowers Online.
