Cub Cadet ZTX5 Ride On Mower | 60 Inch Cutting Deck | Zero Turn
Cub Cadet ZTX5 Ride On Mower | 60 Inch Cutting Deck | Zero Turn
Couldn't load pickup availability

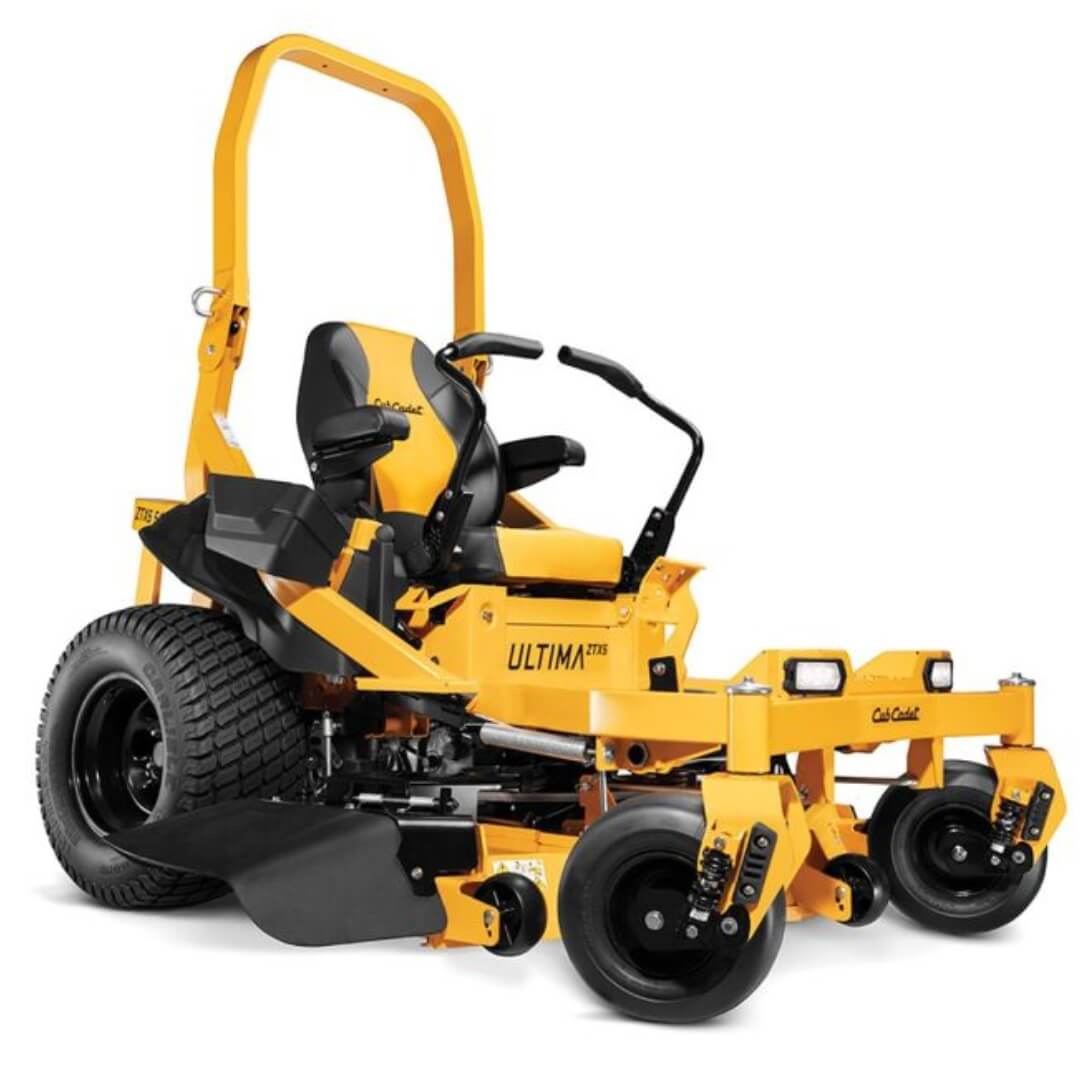

Experience the next evolution of zero turn mowing with the Ultima ZTX5 60. Combining cutting-edge design with commercial-grade features, this distinctive mower delivers unmatched performance, comfort, and durability. Built for ultimate productivity with Cub Cadet's famous Aeroforce deck design for a best-in-class cutting finish.
The Ultimate Zero Turn Mower Experience
Powerful Performance
- 24HP Kawasaki® FR730 V-Twin OHV engine for reliable starting
- Exceptionally smooth and quiet operation
- Dual Hydro-Gear® ZT-3200 hydrostatic transmissions
- Maximum speeds: 13 km/h forward, 6 km/h reverse
Superior Construction
- Thoughtfully designed 1.5" x 3" tubular steel frame
- 60-inch fabricated steel cutting deck (10 gauge steel)
- 2 gauge reinforcement and 7 gauge side wraps
- Roll Over Protection System (ROPS) included
Ultimate Comfort
- Premium high back adjustable seat with cushioned armrests
- Suspension seating system for smooth rides
- Overmolded comfort lap bars for easy control
- Rubber footrest and ergonomic design features
Easy Maintenance
- Open rear design for accessibility
- Easy access to belts and deck components
- 16-position cutting height adjustment (25-120mm)
- Anti-scalp wheels for terrain protection
Comprehensive Warranty Coverage
3-Year Domestic / 2-Year Commercial Warranty on both engine and unit, plus limited lifetime warranty on frame and fabricated deck shell for complete peace of mind.
Ideal Applications
- Perfect for properties up to 12 acres
- Handles slightly rolling hills with ease
- Excellent maneuverability around obstacles
- Suitable for various terrain types
- Maximum slope capability: 15 degrees
Technical Specifications
| Feature | Specification |
|---|---|
| Engine | 24HP Kawasaki V-Twin Engine |
| Transmission | Dual EZT 3200 Hydrostatic |
| Cutting Width | 60 Inches (152cm) |
| Cutting Height Range | 25-120mm (16 positions) |
| Deck Construction | Fabricated Steel - 10 Gauge |
| Block Size | Up to 12 Acres |
| Maximum Speed | 13 km/h forward, 6 km/h reverse |
| Fuel Capacity | 20.8L Centre Mounted Tank |
| Front Tires | 13 x 6.5 Inch with steering |
| Rear Tires | 23 x 12 Inch Turf Master |
| Dimensions (L x W) | 215cm x 159cm (chute up) |
| Weight | 395kg |
| Country of Manufacture | United States |
Cutting System
- Three-blade cutting system (Part #742P05516)
- Electric PTO blade engagement
- Aeroforce deck design for superior cut quality
- Anti-scalp wheels prevent deck damage
- Reverse mowing capability
Control & Safety
- Zero-turn maneuverability for ultimate productivity
- Key start ignition system
- Operator Presence Control for safety
- Roll Over Protection System (ROPS)
- Easy dial deck height adjustment
Optional Accessories
- Grass catcher system (optional extra)
- Mulch plug kit (optional extra)
- Tow hitch included as standard
Specifications of the ZTX5
Country of Manufacture - United States
Block Size - Up to 12 Acres
Engine - 24HP Kawasaki V-Twin Engine
Transmission - Dual EZT 3200 Hydrostatic
Cutting Width - 60 Inches
Cutting Deck Construction - Fabricated Steel
Cutting Deck Thickness - 10 Gauge with 2 Gauge reinforcement and 7 Gauge side wraps
Cutting Height Adjustment - 16 Position
Cutting Height Maximum - 120mm
Cutting Height Minimum - 25mm
Deck Wash - No
Anti Scalp Wheels - Yes
Cruise Control - No
Blade Engagement - Electric PTO
Blade(s) - 3 Blades (Part #742P05516)
Seat - Premium high back adjustable seat with cushioned arm rests and suspesion.
Turning Circle - N/A - Zero Turn
Starting - Key Start
Tow Hitch - Yes
Reverse Mowing - Yes
Grass Catcher - Optional Extra
Mulch Plug - Optional Extra
Safety - Operator Presence Control
Front Tyres - 13 x 6.5 Inch with front wheel steering
Rear Tyres - 23 x 12 Inch Inch Turf Master
Fuel Tank - 20.8L Centre Mounted Fuel Tank
Roll Over Protection - Yes
Maximum Drive Speed - 13 km/h
Maximum Reverse Speed - 6 km/h
Maximum Slope Capability - 15 Degrees
Product Length - 215cm
Product Weight - 395kg
Product Width (Chute Up) - 159cm
Warranty - Engine - 3 Year Domestic / 2 Year Commercial
Warranty - Unit - 3 Year Domestic / 2 Year Commercial
